Indoor Air Quality (IAQ) Sensor content:
Optimize Your Workflow
Choose the sensor that fits your facility and monitoring requirements.

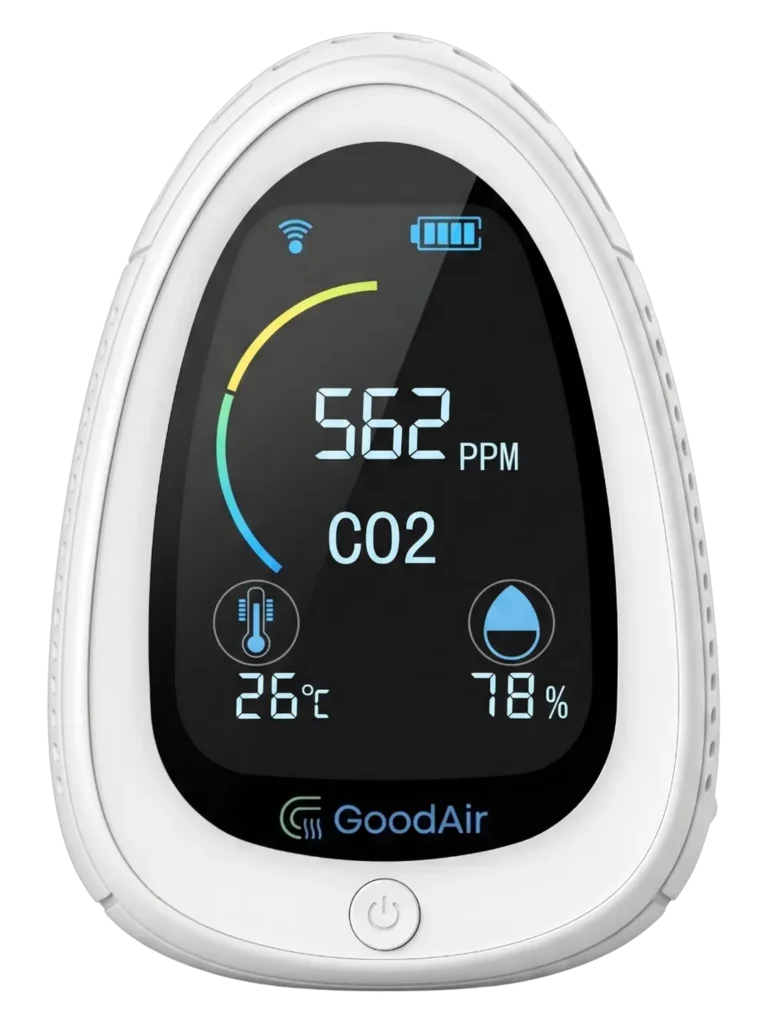

4-IN-1 | PT01
GoodAir PT01
Essential CO2, Temperature & Humidity Monitoring
4-in-1 Wi-Fi IAQ sensor with NDIR CO2 sensing. Compact desktop design.
- CO₂: 400–5000 ppm (NDIR sensor)
- Temperature: 20–60°C
- Humidity: 5–95%
- NDIR CO2 sensor (400–5000 ppm)
- Temperature and humidity monitoring
Best For
Small rooms, counters, offices, clinics, public-facing service areas

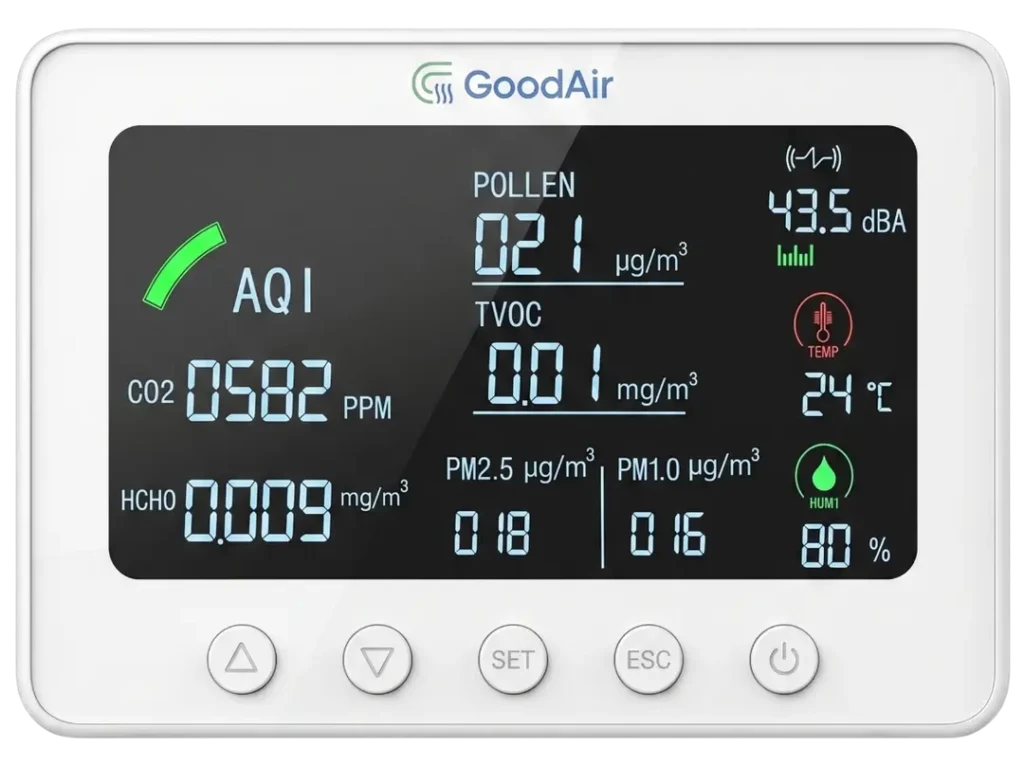

GoodAir PT02
Essential CO2, Temperature & Humidity Monitoring
Flagship sensor with 9-parameter monitoring, LoRa gateway, and API integration.
- CO₂: 400–5000 ppm
- HCHO: 0.01–5 ppm
- TVOC: 0.01–5 ppm
- 9-parameter environmental sensing
- Wi-Fi + LoRa gateway + API
- Cloud dashboard and alert support

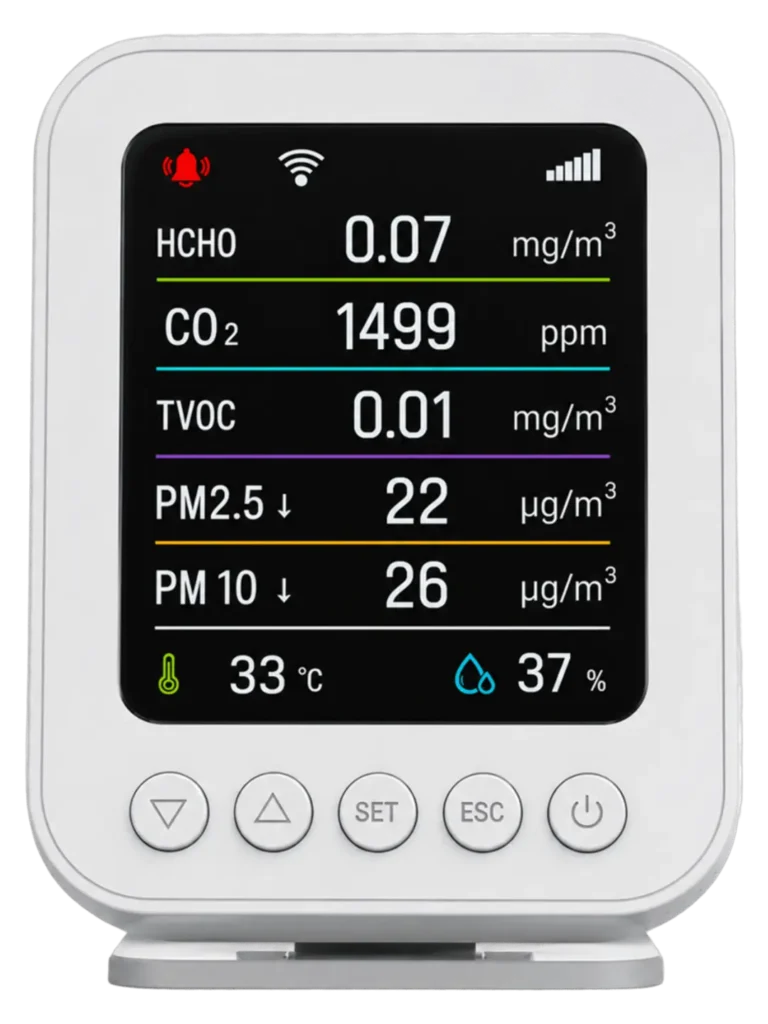

GoodAir PT05
Wall-mountable 7-parameter sensor with data logging for indoor spaces.
- CO₂: 400–5000 ppm
- HCHO: 0.01–1.25 mg/m³
- TVOC: 0.01–19.99 mg/m³
- 7-parameter sensing in compact design
- 128 MB SD card data logging
- Wall or tabletop mount
Best For
Offices, meeting rooms, classrooms, retail, hawker centres
How it works
How it works is that the device will show the current air quality indexes on the screen.
Â
We have a seperate dashboard linked to that device that user can use it to view air quality of their office or factory via the internet. No need to keep looking at the device screen physically
Â
Will provide the dashboard later as i need get the otp.

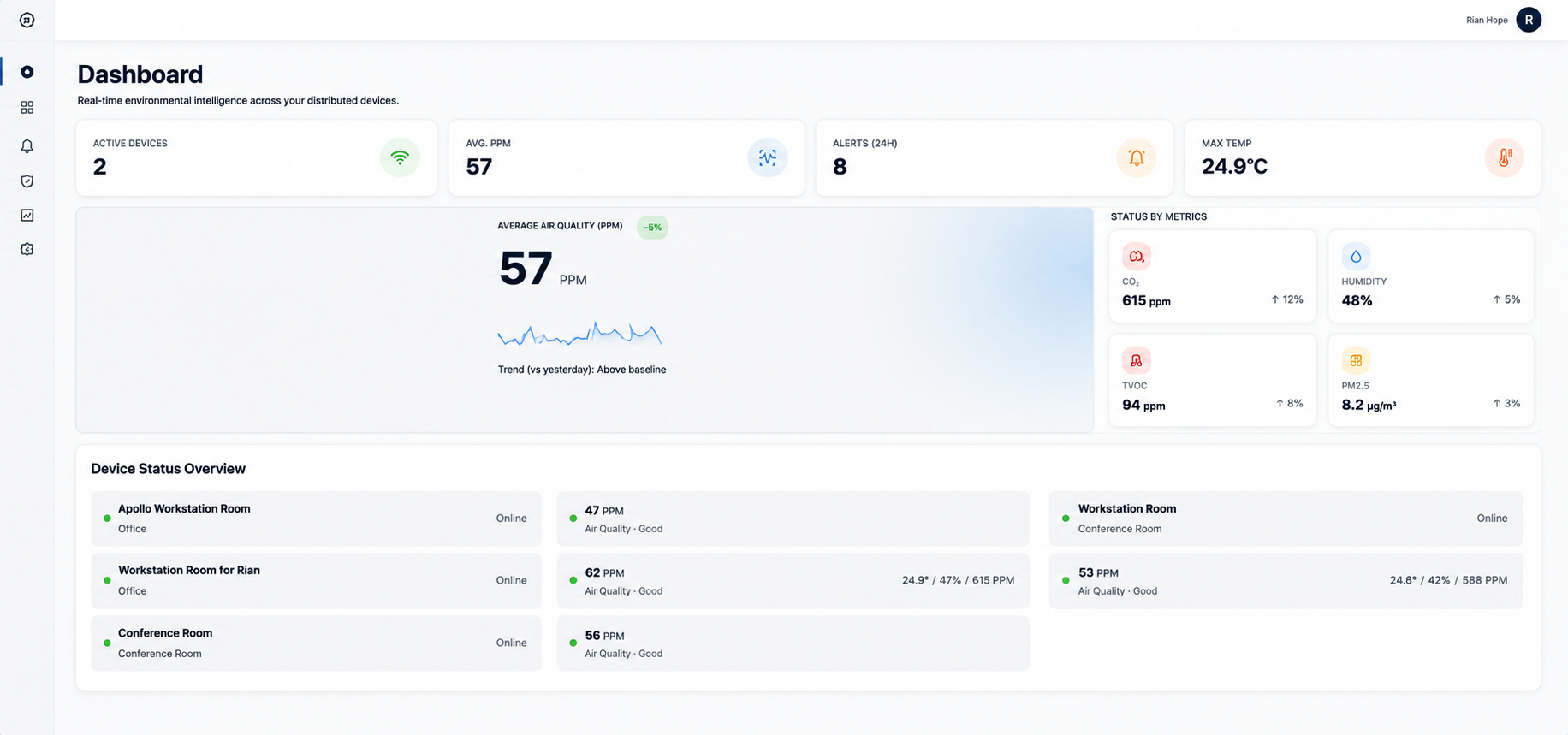

The indoor air quality sensor dashboard. This is the overall page

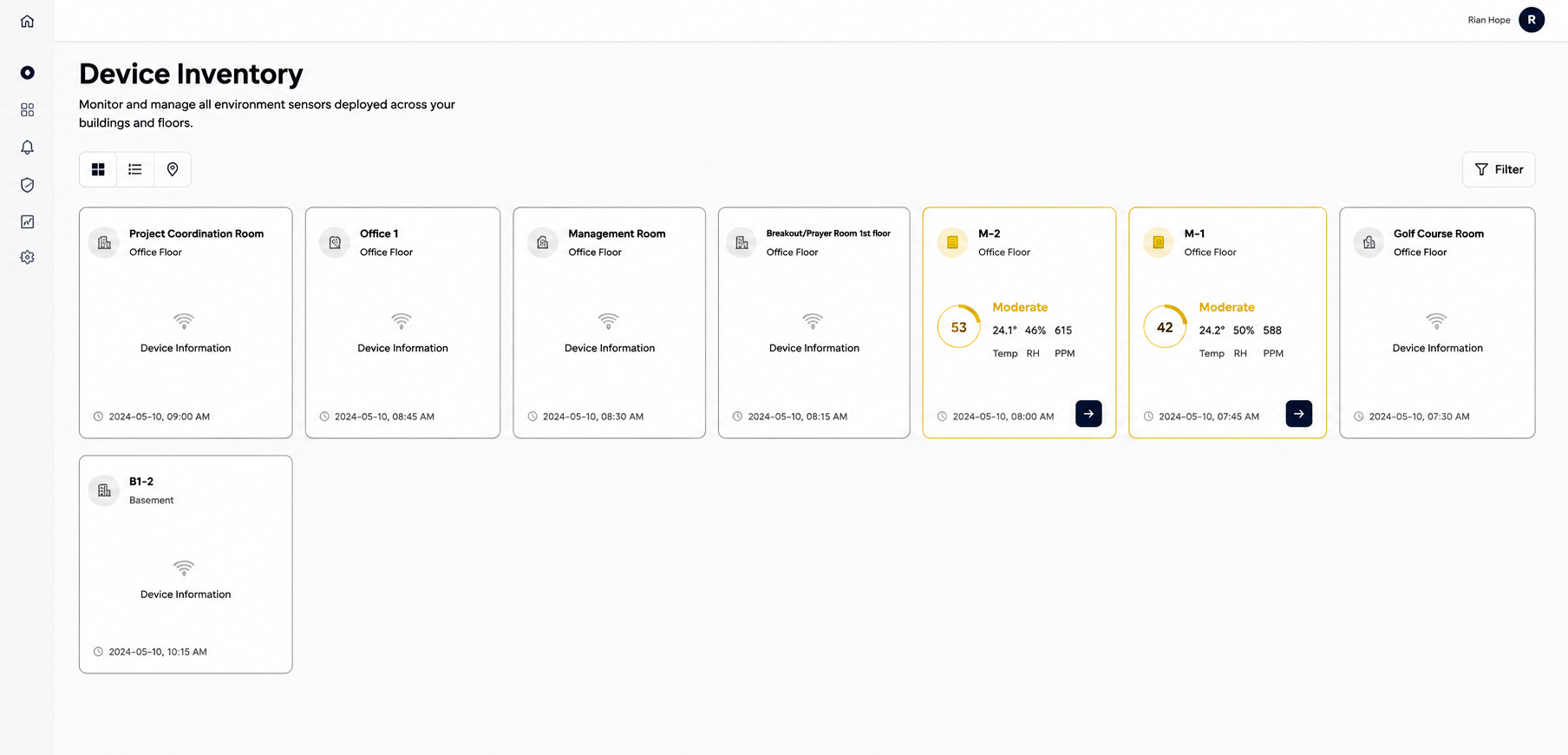

This is the device inventory, can take it as different classroom or different part of the factory

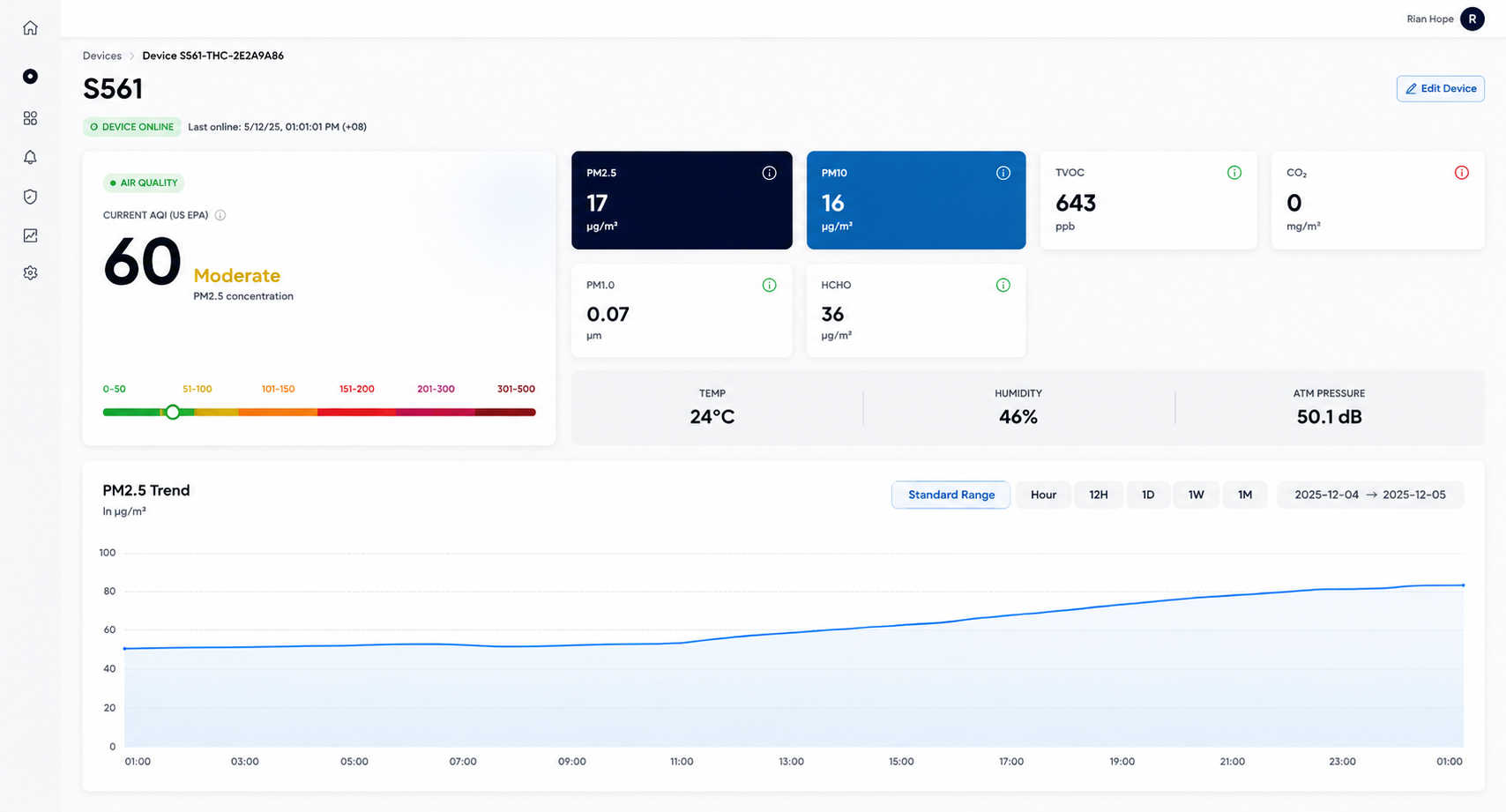

This is the page for the device

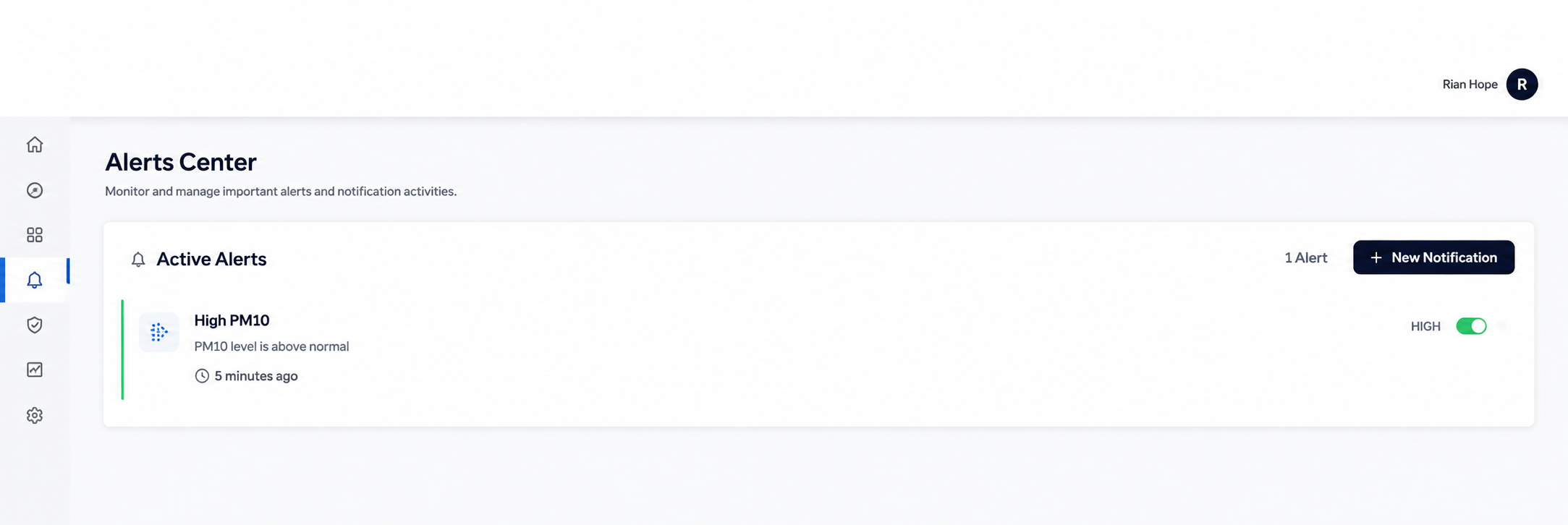

can do alert in here too
